RF TX Specification

• Manual Gain Control

  30dB @1dB step

• Power limit Range

  30dB

• Power limitation ability

  >0dBm

• Noise to communication unit

  <2 dB (NF)

• DC voltage

  12VDC

• Current

  <200mA

• Weight

  ≦0.5Kg

• Dimension (mm)

  98*72*19 (mm)

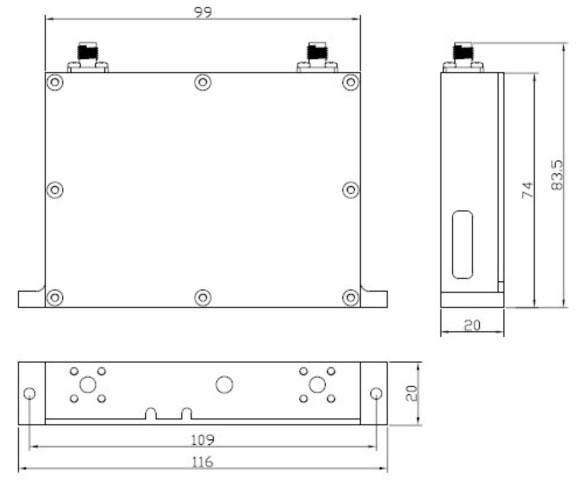

Mechanical Drawing:
