TBSW-M is a stable, highly efficient and easy-to-operate train borne communication control system.

The control system is special designed for Motorola TETRA system. It serves to operate train communication, text transmission and receiving and talk group switching. If the hardware built in with a GPS receiver, it can calibrate train positioning and timing. This System is compatible with Motorola MTM Radio.

• Built-in Hardware ECC
• Global Wear Leveling
• S.M.A.R.T.
• Time Synchronized by GPS (1PPS time synchronization signal)
• Data security implement by passwords which are generated by watch dog.
• System self-test is enabled at system turn on and operation

Software System Specifications and Requirements.

• Storage SSD Specifications

  SATA 3.0

• Form Factor

  2.5"

• Connector

  (7+15) pin male

• Language

  English、Chinese、Numbers etc. (customized)

• Control Unit

  Onboard Intel® Atom N270 1.6 GHz Processor

• Operation System

  Windows 10 professional

• Standard Operating Temperature (°C)

  0 ~ + 70 (°C)

• Shock

  Operation: Acceleration, 50(G)/11(ms)/half sine Non-operation: Acceleration,1,500(G)/0.5(ms)/half sine (compliant with MIL-STD-883K)

• Vibration

  Operation:7.69(Grms), 20~2000(Hz)/random (compliant with MIL-STD-810G) Non-operation:4.02(Grms), 15~2000(Hz)/random (compliant with MIL-STD-810G)

• Dimension (L x W x H)

  9.5mm: 100.00 x 69.85 x 9.3mm

• MTBF (hours)

  >2,000,000

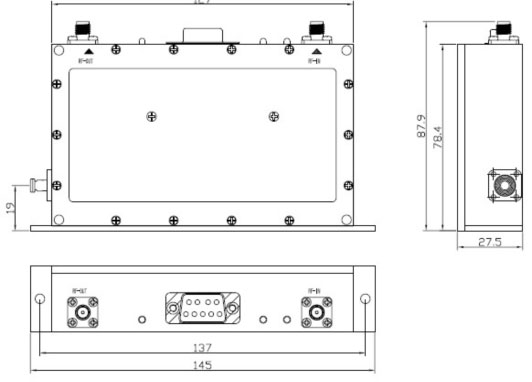

Mechanical Drawing:

Control Platform:
