Specification

• Flatness

  ≦±1.5dB

• Continuous maximum input power

  5dBm

• Input ICP3 @ two -10 dBm signal input

  ≧ 25dBm

• impedance

  50 Ω

• VSWR

  ≦2：1

• Effective input noise(EIN)

  ≦-124dBm/hz

• Optical Control Channel

  FSK modulation

• Optical type

  DFB

• Max optical input power to photo diode

  5dBm

• Optical Transceiver multiplexer

  WDM ( Wavelength Division Multiplexing)

• Optical wave length

  1310nm(TX); 1550nm(RX)

• Optical fiber mode

  Single mode

• Input voltage

  12VDC Max. 4.5W

• Optical connector

  FC/APC

• Optical Control Channel

  FSK modulation

• Weight

  ≦1.5Kg (with bracket)

• Dimension (mm)

  144*83*21 (mm)

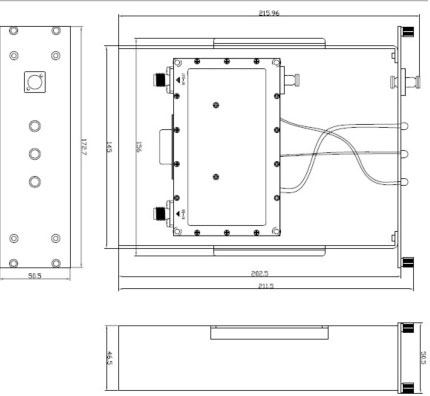

Mechanical Drawing:

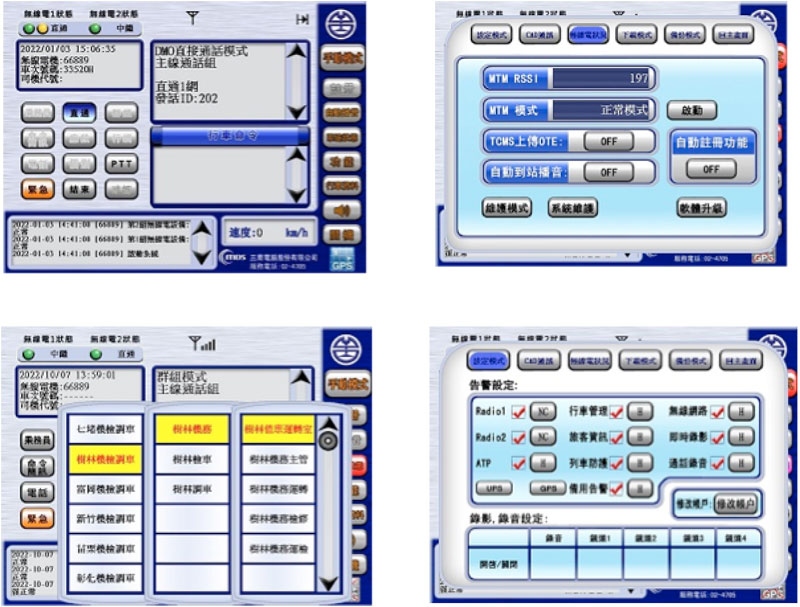

Control Platform:
